VMS Sentry Remote Monitoring and Control

Sentry Remote Monitoring and Control

Sentry allows users to have up to 16 sensors monitored. These sensors can be monitored by a custom set of rules such that when a sensor event happens, and email or SMS is sent (emergency notifications). Sentry also provides a daily status report of the sensors configured.

For more information about Sentry:

Download Sentry Data Sheet

Sentry Features

PEACE OF MIND

• Schedule daily or weekly updates on your vessels status
• Receive emergency notifications
• Create geo-fences and track your vessel’s location

ALWAYS CONNECTED

• Stay connected to your vessel anywhere in the world with global coverage
• Ability to monitor and control up to 16 sensors/actuators

ULTIMATE CONVENIENCE

• Control electronics connected to a Sentry Actuator with rules
• Remotely turn on or off electronics connected to Sentry Actuator

TOTAL CONTROL

• Create custom rules to meet your specific needs. For example:
– If shore power is disconnected, turn off freezer
– If the boat leaves the marina, send a notification
– If the door opens, sound alarm

KNOW BEFORE IT’S TOO LATE

• Stay connected and know the status of your vessel in incliment weather or in remote ports
• Receive vessel updates and emergency notifications via email, SMS or phone

Sentry Sensors and Actuators

Sentry is compatible with a wide variety of sensors.
Additional third-party sensors may also be compatible.

FLOAT SWITCH

Receive alerts when float switch is engaged, and if bilge pump is activated.

Switch turns on when water level is at 51mm and off at 19mm. Compatible with pumps drawing up to 20 amps. Designed for use with fresh and salt water only.

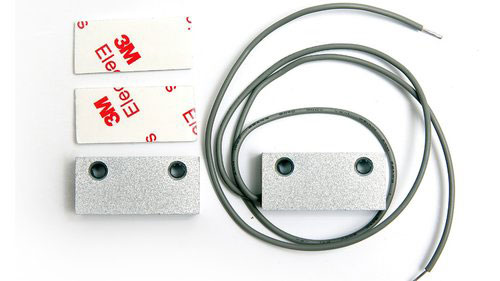

CONTACT SENSOR

Increase vessel security and be notified when windows, doors, cabinets, hatches or other areas have been accessed. Create custom rules to receive alerts or sound alarm when sensor is activated.

Sensor measures 32x15x8mm in size on each side with up to 20-30mm operating gap.

SHORE POWER SENSOR

Monitor shore power status from anywhere and receive an alert if shore power is lost. Avoid the shutdown of critical systems while docked.

Sensor is IP67 rated and suitable for use in dry, damp or wet areas. Input Voltage Range is 90VAC-295VAC.

ACTUATOR

Customize the smart boat experience and turn devices on or off remotely through the actuator. Simply install the actuator between the device and power source.

Compatible with any device, including air conditioning, lights, refrigeration systems, alarms, strobe lights and more.

TACTILE SENSOR

Versatile design allows the tactile sensor to be used for safeguarding or to detect tampering.

Pressure sensitve button can monitor when an item has been removed, or when contact has been made between two surfaces.

GEO-FENCING

Create a geo-fence and receive notifications when vessel moves into or out of restricted areas.

Safeguard against the impact of strong currents, weak anchor hold and theft.

BATTERY MONITORING

Avoid delays due to dead batteries. Monitor battery levels and receive alerts when battery voltage is low.

POSITION TRACKING

Track vessel location from home or the office. Automatic position reporting at custom intervals while the vessel is moving or at rest.

ENVIRONMENTALS

Operating: -15°C to 55°C

Non-Operating: -35°C to 60°C

IEC 60945, EN 60529, IP67

POWER MANAGMENT

For operation in both nominal 12V and 24VDC battery systems

Less than 5W power required (fully configured)

Reverse wiring polarity protection

Continuous over-voltage protection

CONFIGURATION MANAGEMENT

Firmware updates over satellite and via terminal

SYSTEM FEATURES

Integrated audio notifications (buzzer)

Customizable Geo-fencing

Global Search and Rescue

NMEA 2000, USB, Wi-Fi, BLE communications capability

Up to 16 sensors or actuators
